Develop and manufacture environmentally friendly filter materials such as PTFE coated materials, PET non-woven fabrics, PP non-woven fabrics, etc.
| PTFE membrane - Technical parameters for air filtration | ||||||
| The following regular models do not meet your needs. We can also customize production according to the parameters you need | ||||||
Code NO. | Material Name | Width (m) | Pressure Drop (Pa @5.3cm/s) | Filtration Efficiency (%) | Size Range (μm) | Filter Grade |
| LYH10 | PTFE air filtration membrane | ≤2.6 | ≤30 | ≥85 | 0.3-0.5 | E10 |
| LYH11 | PTFE air filtration membrane | ≤2.6 | ≤50 | ≥99 | 0.3-0.5 | E11 |
| LYH12 | PTFE air filtration membrane | ≤2.6 | ≤80 | ≥99.9 | 0.3-0.5 | E12 |
| LYH13 | PTFE air filtration membrane | ≤2.6 | ≤130 | ≥99.95 | 0.3-0.5 | H13 |
| LYH14 | PTFE air filtration membrane | ≤2.6 | ≤180 | ≥99.98 | 0.1-0.2 | H14 |
| LYH15 | PTFE air filtration membrane | ≤2.6 | ≤250 | ≥99.999 | 0.1-0.2 | U15 |
Process performance | ||||||

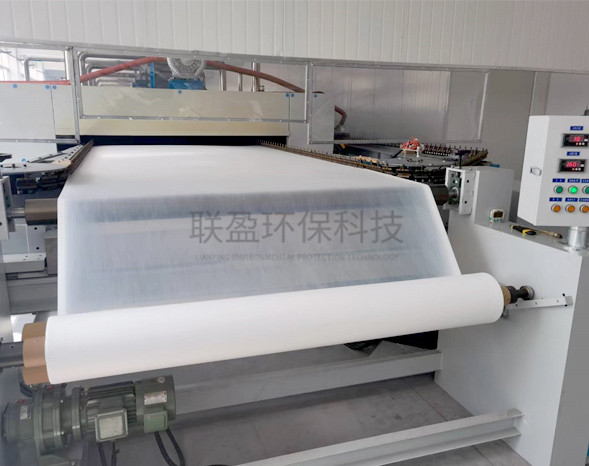

1.Made from PTFE resin as raw material through special processes such as mixing, extrusion, extrusion, rolling, and biaxial stretching; | ||||||
2.Composite with breathable support materials, high filtration efficiency, low resistance, and good strength; | ||||||
3.High temperature resistance, chemical resistance, and excellent waterproof performance; | ||||||
4.Easy to remove dust accumulated on the surface of materials; | ||||||
5.Can be used for applications requiring pleating and washing. | ||||||

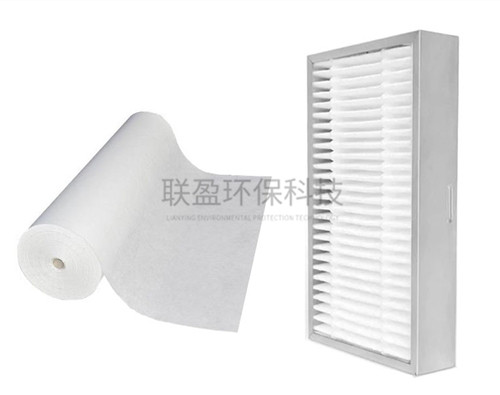

Application of PTFE membrane air filtration membrane | ||||||
This product is widely used in the fields of air purification and filtration (vacuum cleaner filters, clean room filters, fresh air systems, personal protection, etc.) and industrial dust removal (filter cartridges, filter bags, etc.). | ||||||
Home appliance filtration
Cleanroom filtration
Personal protection (protective clothing, masks)
Industrial dust removal
