W"H*D(mm)

Pockets

Area(m²)

Eficlency

Alrflow(CMH)

Inltial Pressure(Pa)

Arflow(CMH)

Initial Pressure(Pa)

Performance

1.Each filter bag edge adopts ultrasonic hot melt method, which has excellent airtightness and bonding strength;

2.Each filter bag has six layers of inner lining to prevent the filter bag from expanding excessively with wind pressure during operation, and to shield each other from reducing the effective filtration area and filtration effect;

3.After testing and actual market feedback, the product filter material has the advantages of low initial resistance, large dust holding capacity, good filtration efficiency, and long service life;

Product specifications

Filtration efficiency: G4、F5、F6、F7、F8、F9

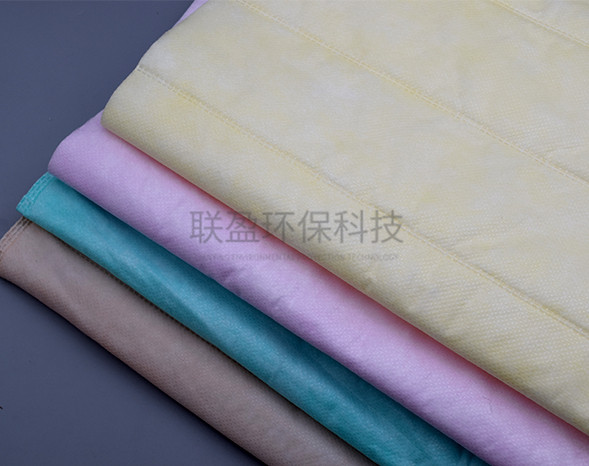

Optional filter materials: needle punched cotton, double resistance separator

Operating conditions: temperature ≤ 80 ℃, humidity ≤ 80% RH

Application

Bag type air filter bags are widely used for secondary air filtration in various fields such as electronic precision instrument workshops, pharmaceuticals, food, and automotive manufacturing industries due to their unique bag structure, low cost, and economic durability;

Note

1.The above resistance deviation is within ± 10%;

2.The filter bag can be used at 70% to 130% of the rated wind speed;

3.All performance parameters are based on the EN779-1993/ASHRAE 52.1-1992 testing method;

4.We can provide you with filter bags in other sizes.
